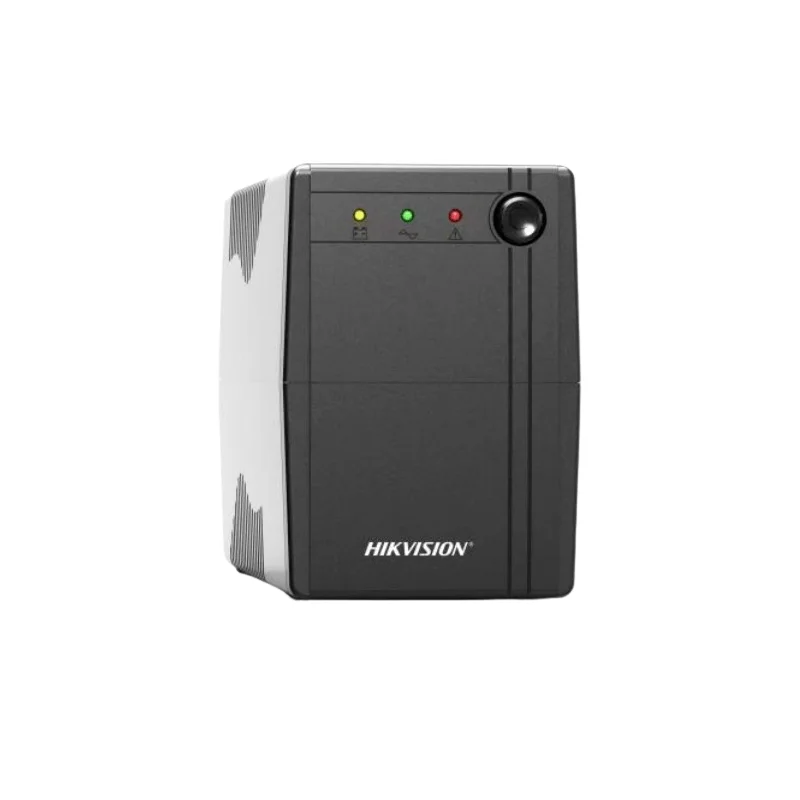

Onduleur 600 VA / 360 W Hikvision DS-UPS600

About this item

• Power
• UPS Capacity600 VA / 360 W

• Input
• Input Voltage Range85 VAC to 150 VAC
• Input Frequency50/60 Hz self-adaptive
• Plug TypeType B (NEMA 5-15)

• Output
• Output Voltage Range110 VAC to 125 VAC
• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Transfer Time≤ 10 ms
• WaveformPWM
• Outlet TypeType B (NEMA 5-15)
• Outlet NumberBattery outlet*4 & Bypass*2

• Battery
• Battery Type12 V/7 Ah, lead-acid battery
• Recharge Time4-6 hours recover to 90% capacity
• Typical Backup Time

  Run time at 60w: 35 min

  Run time at 100w: 20 min

  Run time at 200w: 3 min

• Interface
• Communicate PortsNo

• Protection
• Full ProtectionSurge protection,Overload protection,Discharge protection,Overcharge protection

• Indicator
• Display

  LED indicator

  Working Mode (AC Mode): Solid green

  Charging Mode (DC Mode): Solid red

  Overloading Mode: Flashing yellow

• Alarm

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

• General
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension274 mm × 95 mm × 139 mm (10.79″ × 3.74″ × 5.47″)
• WeightApprox. 4.2 kg (9.26 lb)
