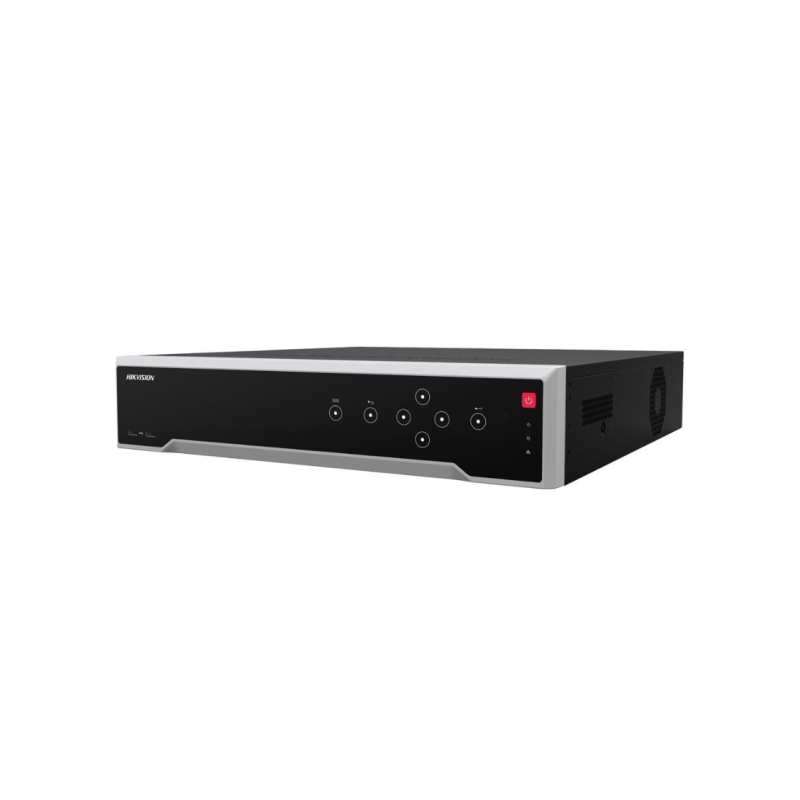

NVR Hikvision 64 channels 8k DS-7764NI-M4

About this item

• Video and Audio
• IP Video Input :

64-ch

Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Incoming Bandwidth :400 Mbps
• Outgoing Bandwidth :400 Mbps
• HDMI 1 Output :8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output :

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA Output :1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode :HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
• CVBS Output :1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output :1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio :1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Decoding
• Decoding Format :
• H.265+/H.265/H.264+/H.264
• Recording Resolution :

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Synchronous Playback :16-ch
• Decoding Capability :2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Dual-Stream Recording :Support
• Stream Type :Video, Video & Audio
• Audio Compression :G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

• Network
• Remote Connection :128
• Network Protocol :TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• Network Interface :2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• Camera Access Protocol :ONVIF(Version 2.5), RTSP

• RAID
• RAID Type :N/A

• Auxiliary Interface
• eSATA :1 eSATA interface
• SATA :4 SATA interfaces
• Capacity :Up to 16 TB capacity for each disk
• Serial Interface :2 RS-485 (half-duplex), 1 RS-232
• Alarm In/Out :16/9
• USB Interface :Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Ctrl 12V :

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

• DC 12 :V12 VDC, 1 A power output

• General
• Power Supply :100 to 240 VAC, 50 to 60 Hz
• Consumption :≤ 15 W (without HDD)
• Working Temperature :-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity :10% to 90%
• Chassis :19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H) :445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
• Weight :≤ 5 kg (without HDD, 11 lb.)

• Certification
• FCC :Part 15 Subpart B, ANSI C63.4-2014
• CE :

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
